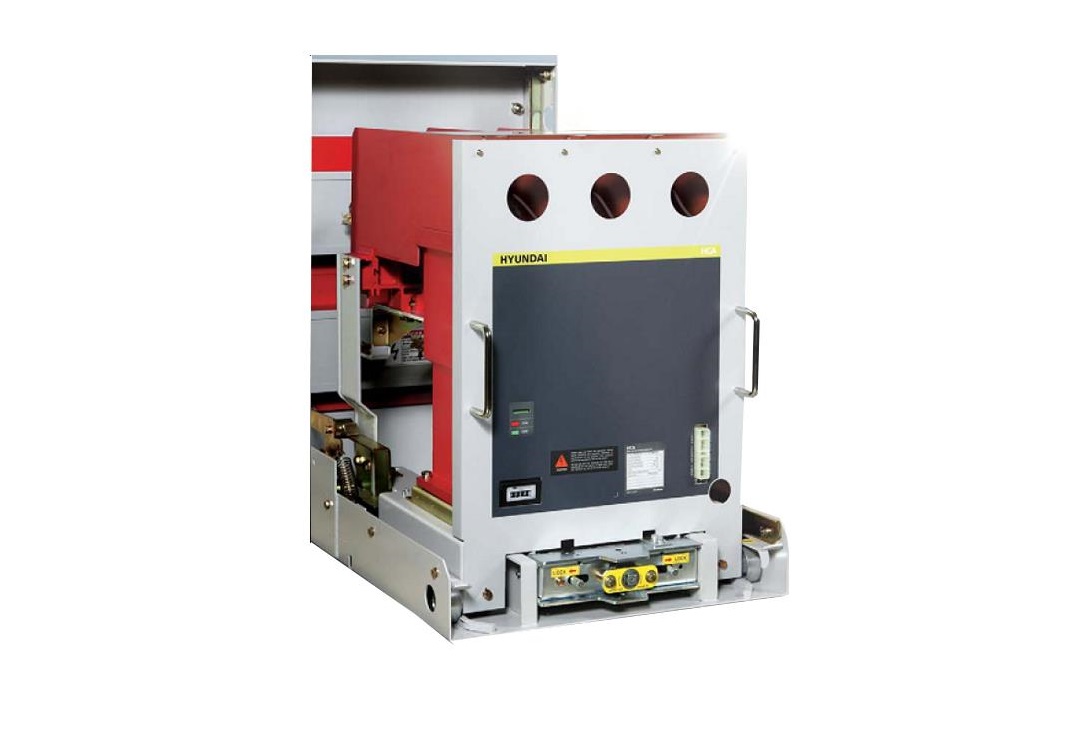

Các dòng Contactor Chân Không 3.6/7.2kV Hyundai - UVC
|
Vacuum Contactor 3.6/7.2kV, Continuously -type, Fixed type |
||
|
UVC3□CX1000000** |
3.6kV, without fuse holder, 3NO+2NC |
(*) |
|
UVC6□CX1000000** |
7.2kV, without fuse holder, 3NO+2NC |
(*) |
|
UVC3□CA1006000*CM |
3.6kV, with 192mm single fuse holder not including fuse 3NO+2NC, with FMD |
(*) |
|
UVC6□CA1006000**CM |
7.2kV, with 192mm single fuse holder not including fuse 3NO+2NC, with FMD |
(*) |
|
Vacuum Contactor 3.6/7.2kV, Continuously -type, Draw-out type |
||
|
UVC3□CB1F10000** |
3.6kV, without fuse holder, 3NO+2NC With F Cradle (Insulation Shutter) |
(*) |
|
UVC6□CB1F10000** |
7.2kV, without fuse holder, 3NO+2NC With F Cradle (Insulation Shutter) |
(*) |
|
UVC3□CD1F16000**CM |
3.6kV, with 192mm single fuse holder not including fuse, 3NO+2NC, With F Cradle (Insulation Shutter), with FMD |
(*) |
|
UVC6□CD1F16000**CM |
7.2kV, with 192mm single fuse holder not including fuse, 3NO+2NC, With F Cradle (Insulation Shutter), with FMD |
(*) |
|
Vacuum Contactor 3.6/7.2kV, Latched-type, Fixed type |
||
|
UVC3□LX1000000** |
3.6kV, without fuse holder, 3NO+2NC |
(*) |
|
UVC6□LX1000000** |
7.2kV, without fuse holder, 3NO+2NC |
(*) |
|
UVC3□LA1006000**CM |
3.6kV, with 192mm single fuse holder not including fuse 3NO+2NC, with FMD |
(*) |
|
UVC6□LA1006000**CM |
7.2kV, with 192mm single fuse holder not including fuse 3NO+2NC, with FMD |
(*) |
|
Vacuum Contactor 3.6/7.2kV, Latched -type, Draw-out type |
||
|
UVC3□LB1F10000** |
3.6kV, without fuse holder, 3NO+2NC With F Cradle (Insulation Shutter) |
(*) |
|
UVC6□LB1F10000** |
7.2kV, without fuse holder, 3NO+2NC With F Cradle (Insulation Shutter) |
(*) |
|
UVC3□LD1F16000**CM |
3.6kV, with 192mm single fuse holder not including fuse, 3NO+2NC, With F Cradle (Insulation Shutter), with FMD |
(*) |
|
UVC6□LD1F16000**CM |
7.2kV, with 192mm single fuse holder not including fuse, 3NO+2NC, With F Cradle (Insulation Shutter), with FMD |
(*) |
□: Chọn dòng định mức 2: 200A/ 4: 400A
(**) : Chọn điện áp làm việc H: AC/DC 200 ~ 230V / L: AC/DC 100 ~ 125V (*) : Quý khách vui lòng liên hệ NPP/ Đại lý Hyundai.
(*) : Quý khách vui lòng liên hệ NPP/ Đại lý Hyundai.
